PUMPPAL Power Pack

PMSM - Intelligent VFD Booster Pump

Applications

Residential: Household water supply, pipeline pressurisation, garden and greenhouse irrigation

Agricultural: Fish farming, poultry facilities

Commercial: Mining operations, enterprise water systems, high-rise buildings,
HVAC and heating circulation systems

Benefits

• High efficiency PMSM
• Variable frequency & constant Pressure
• Super silent < 50dB
• Wide range pressure settings 20-95%
• IP55 protection
• Premium PPO impeller
• PCB Sealed with Potting Compound
• 14 protection functions for great user experience
• Optional:Pump Link Mode - Achieve double water output
• Host & Slave pump: Auto - Alternating run mode
• Host & Slave pump: Timing-alternating run mode
• Optional: WiFi Function

14 Protection Functions

• Soft start and soft stop
• Antifreeze protection
• Phase loss protection
• Water shortage protection
• Overcurrent protection
• Stall protection
• Input voltage over/under protection
• Driver board overheating protection
• High water temperature protection
• Short-time overheating protection
• Pipeline Leak Warning
• IPM temperature sensor warning
• Water temperature sensor warning
• Pressure sensor failure warning

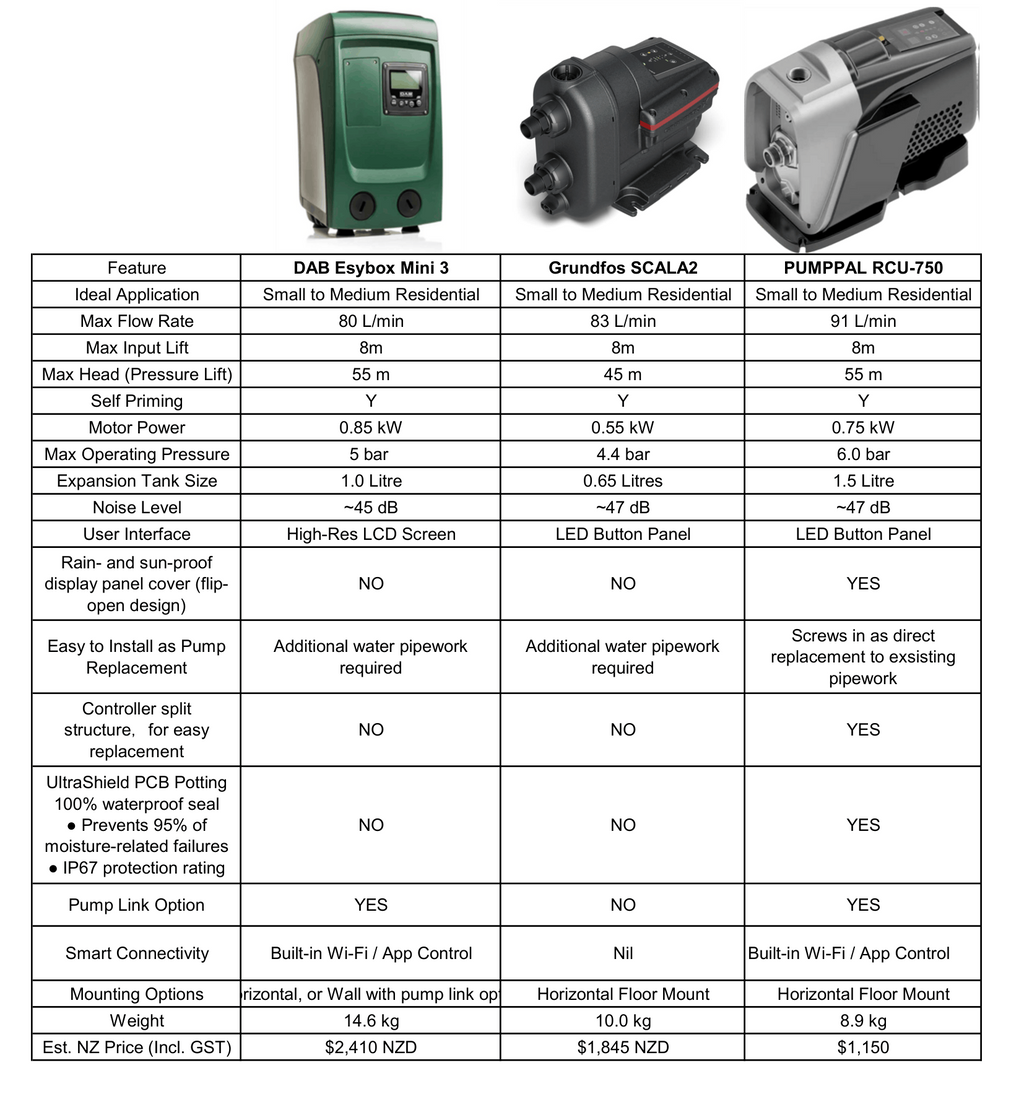

RUC Pump Range Data Sheet
